新能源汽车蓬勃发展，与之配套的大功率直流充电桩是其关键支撑。大功率直流充电桩通常在高温环境下，输出高压大电流，且要求高能效、高性能。瑶芯针对前级PFC电路推出极低Vcesat、VF电压IGBT 系列产品来满足大功率直流充电模块；针对后级DC-DC部分，推出极低寄生电容SiC产品来满足充电模块高效、高频化应用。

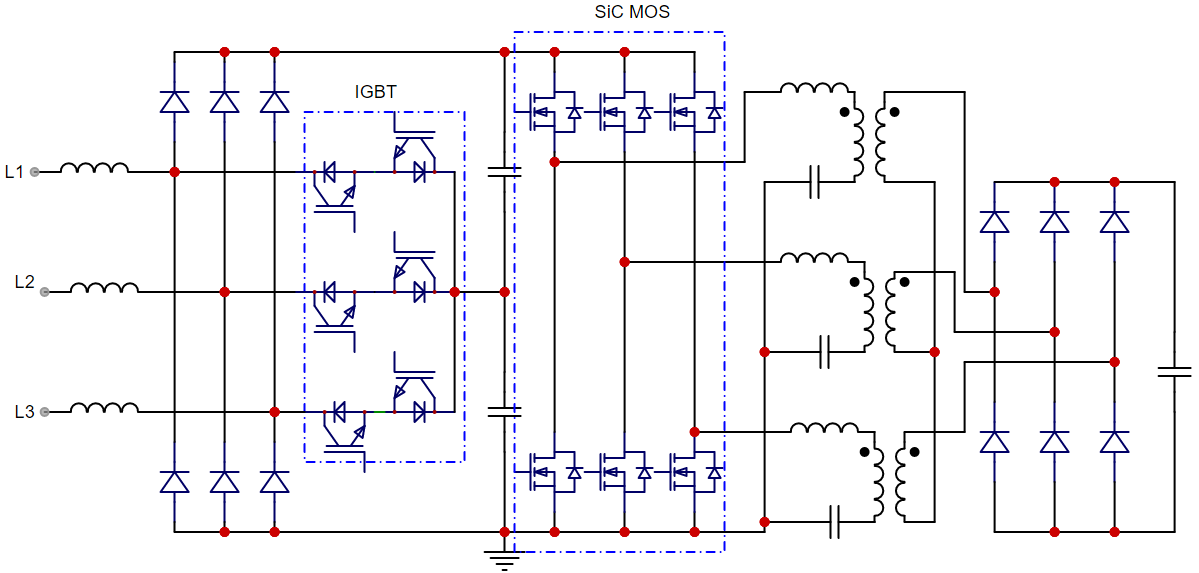

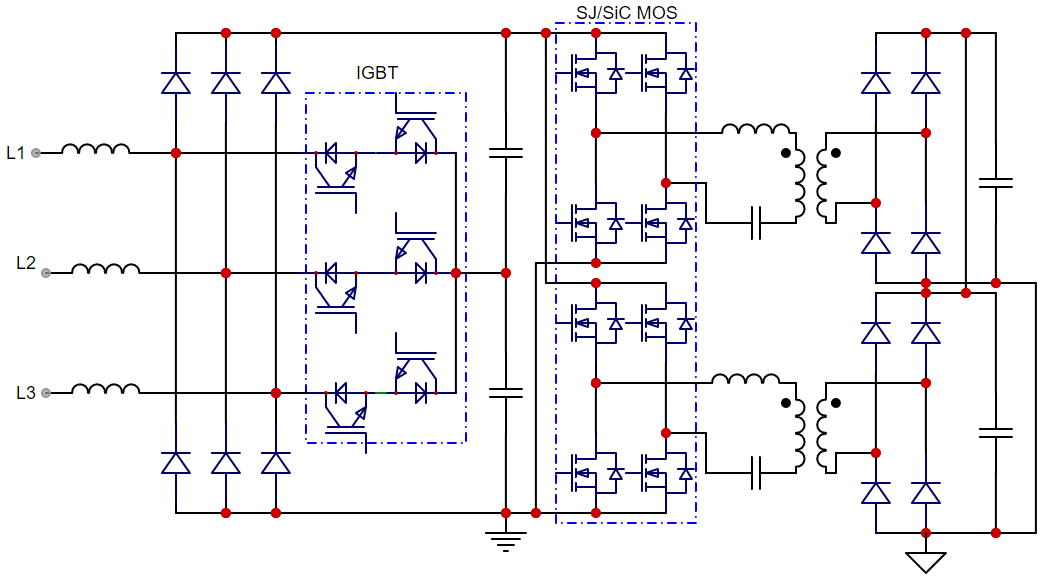

框图

共创智能与可持续的未来

沪ICP备 2020036924号-1 沪公网安备31011502402881号
 隐私政策

产品中心: 硅功率器件; 碳化硅功率器件; MEMS传感器; 信号链芯片

产品应用: 汽车; 绿色能源; 通信; 高性能计算; 工业; 智能生活

质量管理: 质量方针; 质量体系认证证书; 全面质量管理

关于瑶芯: 企业简介; 企业文化; ESG; 企业视频

联系我们: 联系方式; 销售网络; 留言反馈

Select	AKS Part Number	Status	Package	Spice model	Type	VCES/VRRM(V)	ICE/IF(A)	VCEsat_Typ(V)	Vth_Typ(V)	VF_Typ(V)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKDK2N075WBF Datasheets Marking POD Tape&reel	MP	TO-247-2L	-	FRD	1200	75	-	-	2
	AKB65A040WBH Datasheets Marking POD 1 POD 2 Tape&reel 1 Tape&reel 2	MP	TO-247-3L	-	IGBT+FRD	650	40	1.6	4.0	1.45
	AKB65N050WH Datasheets Marking POD Tape&reel	MP	TO-247-3L	-	IGBT	650	50	1.6	4.0	-
	AKB65N075WH Datasheets Marking POD Tape&reel	MP	TO-247-3L	-	IGBT	650	75	1.6	4.0	-
	AKB65A050WBH Datasheets Marking POD Tape&reel	MP	TO-247-3L	-	IGBT+FRD	650	50	1.6	4.0	1.55
	AKB65A050WHH AKB65A050WHH	MP	TO-247-3L	-	IGBT+FRD	650	50	1.6	4.0	1.45
	AKBK2A040WHH Datasheets Marking POD Tape&reel	MP	TO-247-3L	-	IGBT+FRD	1200	40	1.9	5.8	1.9
	AKBK2A075YHH AKBK2A075YHH	MP	TO-247Plus-3L	-	IGBT+FRD	1200	75	1.9	5.8	1.8
	AKB65A075WHH AKB65A075WHH	MP	TO-247-3L	-	IGBT+FRD	650	75	1.6	4.0	1.5
	AKBK2A100YHH AKBK2A100YHH	MP	TO-247Plus-3L	-	IGBT+FRD	1200	100	1.7	5.8	2.1
	AKDK2N100WBF AKDK2N100WBF	MP	TO-247-2L	-	FRD	1200	100	-	-	2.05
	AKB65A075WHS AKB65A075WHS	MP	TO-247-3L	-	IGBT+FRD	650	75	1.4	4.0	1.5
	AK1BK2A140YHH AK1BK2A140YHH	MP	TO-247Plus-3L	-	IGBT+FRD	1200	140	1.7	5.5	2.1
	AKB65A075WAHH AKB65A075WAHH	MP	TO-247-4L	-	IGBT+FRD	650	75	1.6	4.0	1.5
	AKB65A075WBH AKB65A075WBH	MP	TO-247-3L	-	IGBT+FRD	650	75	1.6	4.0	1.55
	AK1BK2A140YAHH Datasheets Marking POD Tape&reel	MP	TO-247Plus-4L	-	IGBT+FRD	1200	140	1.7	5.5	2.1

Select	AKS Part Number	Package	Status	Spice model	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @18V(mΩ)	RDSon_Max @18V(mΩ)	RDSon_Typ @15V(mΩ)	RDSon_Max @15V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKCK7M1K0WMH Datasheets Marking POD Tape&reel	TO-247-3L	MP	-	1700	18/22V	6	3.2	1000	1500	-	-	184	12	3	16.5
	AK1CK2M032WAMH-A Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	+22/-10	80	3.2	27	38	-	-	3550	130	10	176
	AKCK7M1K0DBMH Datasheets Marking POD Tape&reel	TO-263-7L	MP	-	1700	+22/-10	5.5	3.2	1000	1500	-	-	184	12	3	16.5
	AK1CK2M075WAMH Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	10/22V	29	2.6	75	90	-	-	1268	48	4	65
	AK1CK2M070WAMH Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	10/22V	35	2.8	60	78	-	-	1447	59	5	78
	AK1CK2M032WAMH Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	10/22V	80	3.2	27	38	-	-	3550	130	10	176
	AK1CK2M030WDMH Datasheets Marking POD Tape&reel	TO-247LP-4L	MP	-	1200	10/22V	73.5	2.6	26	35	-	-	3340	125	10	168
	AK1CK2M030WAMH Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	10/22V	73.5	2.6	26	35	-	-	3340	125	10	168
	AK1CK2M016WAMH Datasheets Marking POD Tape&reel	TO-247-4L	MP	-	1200	10/22V	110	2.6	16	22	-	-	5800	213	16	279
	AK1CK2M040WDM Datasheets Marking POD Tape&reel	TO-247LP-46	MP	-	1200	-10/22V	62	-	35	45	40	50	2600	90	6.5	113
	AKCK2M080WMH AKCK2M080WMH	TO-247-3L	MP	-	1200	-6	35	3.2	80	95	-	-	1295	65	8	68.6
	AKCK2M080WAMH AKCK2M080WAMH	TO-247-4L	MP	-	1200	-6	35	3.2	80	90	-	-	1295	65	8	68.6
	AKCK2M040WAMH-A AKCK2M040WAMH-A	TO-247-4L	MP	-	1200	-6	59	3.2	40	54	-	-	2360	108	13	128
	AKCK2M042WAMH AKDK2N100WBF AKCK2M016WMH AKCK2M042WAMH	TO-247-4L	MP	-	1200	-6	59	3.2	42	54	-	-	2360	108	13	128
	AKCK2M080WAMH-A AKCK2M080WAMH-A	TO-247-4L	MP	-	1200	-6	35	3.2	80	95	-	-	1295	65	8	68.6
	AK1CK2M040WAM AK1CK2M040WAM	TO-247-4L	MP	-	1200	-6	62	2.7	35	45	40	50	2600	90	6.5	113
	AKCK2M042WAMH AKCK2M042WAMH	TO-247-4L	MP	-	1200	-10	59	3.2	40	54	-	-	2360	108	13	128
