产品应用>高性能计算

High performance computing: 超算

汽车

车载充电机（OBC）、DC-DC转换器

绿色能源

通信

高性能计算

工业

智能生活

应用

随着人工智能、云计算不断提升，电源功率增大，要求电源在更小的体积内能够提供更高的功率，通过采用第三代半导体SiC以及优化电路设计等方式，不断提高电源的功率密度，使服务器的空间利用更加高效。瑶芯提供的 SiC MOS、SJ MOS以及 SGT MOS可完美匹配一系列需求。

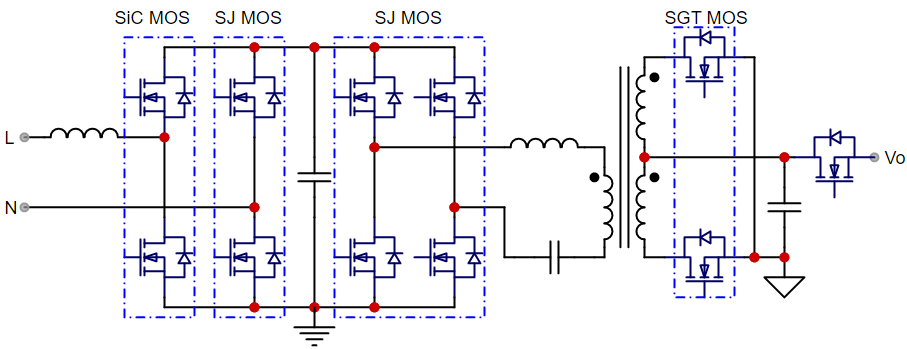

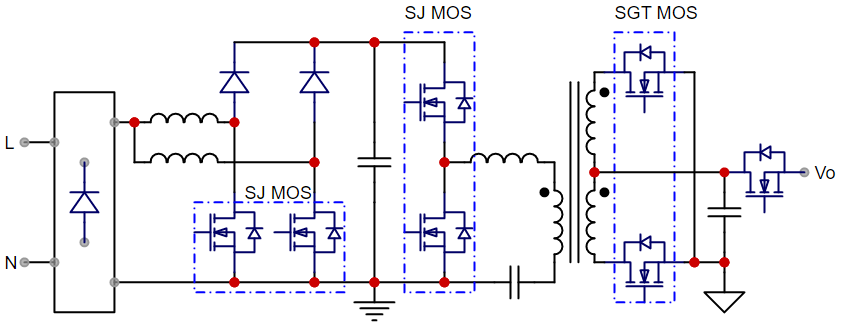

框图

相关产品

Select	AKS Part Number	Package	Status	Spice model	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @18V(mΩ)	RDSon_Max @18V(mΩ)	RDSon_Typ @15V(mΩ)	RDSon_Max @15V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKCK7M1K0WMH Datasheets Marking POD Tape&reel	TO-247-3L	MP	-	1700	18/22V	6	3.2	1000	1500	-	-	184	12	3	16.5
	AKCK7M1K0DBMH Datasheets Marking POD Tape&reel	TO-263-7L	MP	-	1700	+22/-10	5.5	3.2	1000	1500	-	-	184	12	3	16.5
	AKC65M045WDM Datasheets Marking POD Tape&reel	TO-247LP-4L	MP	-	650	10/22V	50	2.8	34	-	41	60	2600	145	5	81

Select	AKS Part Number	Status	Spice model	Package	VRRM(V)	IF(A)	VF_Typ(V)	Qc_Typ(nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AKC650D006PA	MP	-	TO-220-2L	650	6	1.35	18
	AKC65D006KHH	MP	-	TO-252-2L	650	6	1.35	18
	AKC65D006GHH	MP	-	PDFN5*6	650	6	1.35	18
	AKC65D008PAHH	MP	-	TO-220-2L	650	8	1.38	26
	AKC65D010PAHH	MP	-	TO-220-2L	650	10	1.38	31
	AKC65D020PAHH	MP	-	TO-220-2L	650	20	1.38	65
	AKCK2D020WBHH	MP	-	TO-247-2L	1200	20	1.4	110

共创智能与可持续的未来

沪ICP备 2020036924号-1 沪公网安备31011502402881号
 隐私政策

产品中心: 硅功率器件; 碳化硅功率器件; MEMS传感器; 信号链芯片

产品应用: 汽车; 绿色能源; 通信; 高性能计算; 工业; 智能生活

质量管理: 质量方针; 质量体系认证证书; 全面质量管理

关于瑶芯: 企业简介; 企业文化; ESG; 企业视频

联系我们: 联系方式; 销售网络; 留言反馈

Select	AKS Part Number	Status	Spice model	Package	VDS(V)	Vgs(V)	ID(A)	Vth_Typ(V)	RDSon_Typ @10V(mΩ)	RDSon_Max @10V(mΩ)	CISS_Typ (pF)	COSS_Typ (pF)	CRSS_Typ (pF)	QG_Typ (nC)
Select
	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter	Filter
	AK3S60N290WMF Datasheets Marking POD Tape&reel	NEW	-	TO-247	600	30	80	4.0	26	29	4510	115	30	134
	AK3S60N580TMF Datasheets Marking POD Tape&reel	NEW	-	TOLL	600	30	50	3.8	45	58	2890	63	15	95
	AKS65N1K9PM Datasheets Marking POD 1 POD 2 Tape&reel	MP	-	TO-220	650	30	20	3.3	145	190	1670	83.1	0.8	44
	AK3S60N580PMF Datasheets Marking POD Tape&reel	MP	-	TO-220	600	30	50	3.8	45	58	2890	63	15	95
	AK3S60N580WMF Datasheets Marking POD Tape&reel	MP	-	TO-247	600	30	50	3.8	45	58	2890	63	15	95
	AK3S60N450WMF Datasheets Marking POD Tape&reel	NEW	-	TO-247	600	30	52	4.0	38	45	3580	78	21	117
	AK3S60N450PMF Datasheets Marking POD Tape&reel	MP	-	TO-220	600	30	52	4.0	38	45	3580	78	21	117
	AK3S60N380WMF Datasheets Marking POD Tape&reel	MP	-	TO-247	600	30	63	4.0	33	38	3975	90	33	136
	AK2S65N990WMF Datasheets Marking POD Tape&reel	MP	-	TO-247	650	30	38	4.1	75	99	2380	66	7	68
	AK3S60N1K8FMF Datasheets Marking POD Tape&reel	MP	-	TO-220F	600	30	11	4.0	140	180	1287	26	3	32
	AK3S60N380PMF Datasheets Marking POD Tape&reel	NEW	-	TO-220	600	30	63	4.0	33	38	3975	90	93	136
	AK3S60N450TMF Datasheets Marking POD Tape&reel	MP	-	TOLL	600	30	52	4.0	38	45	3580	78	21	117
	AKS60N300WMF AKS60N300WMF	MP	-	TO-247-3L	600	30	80	3.5	25	30	7699	3091	2.1	200.8
	AKS65N1K9DM	MP	-	TO-263	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N1K9FM	MP	-	TO-220F	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N1K9FAM	MP	-	TO-220NF	650	30	20	3.3	140	190	1670	83.1	0.8	44
	AKS65N410WMF	MP	-	TO-247-3L	650	30	62	4.0	34	41	6715	245	1.64	172
	AKS65N950WMF AKS65N950WMF	MP	-	TO-247	650	30	35	4.0	84	95	3375	76	8	90
	AKS65N1K9FMF Datasheets Marking POD Tape&reel	MP	-	TO-220F	650	30	20	3.8	136	190	1695	74	2	46
	AKS65N1K9LM	MP	-	PDFN8*8	650	30	30	3.3	140	190	1670	83.1	0.8	44
	AKS65N2M2KMF AKS65N2M2KMF	MP	-	TO-252	650	30	2	3.7	1800	2200	159	22	2.5	8.1
	AK3S60N220WMF AK3S60N220WMF	MP	-	TO-247	600	30	130	4.3	15.5	22	11165	173	20	278
	AK3S65N370WMF AK3S65N370WMF	MP	-	TO-247-3L	650	30	65	4.0	29	37	7185	103	16	160
	AK3S60N221WMF AK3S60N221WMF	MP	-	TO-247	600	30	100	4.3	18.5	22.1	9820	160	7	245
	AK3S60N680WMF AK3S60N680WMF	MP	-	TO-247	600	30	35	4.0	56	68	3240	60	3.5	83
	AK3S60N355TMF AK3S60N355TMF	MP	-	TOLL	600	30	63	4.0	32	35.5	3975	90	33	136
	AKS65N1K9PMF AKS65N1K9PMF	MP	-	TO-220	650	30	21	3.8	144	190	1695	74	2	46
	AK3S60N1K8FMF AK3S60N1K8FMF	MP	-	TO-220F	600	30	11	4.0	140	180	1287	26	3	32
